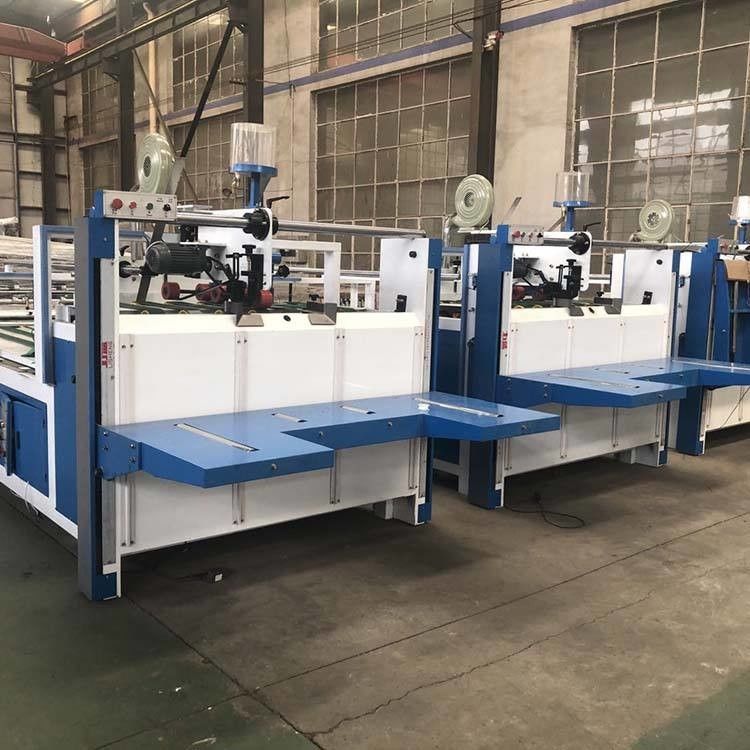

Electric Driven 2800mm Carton Gluer Machine Semi Automatic

Large Image : Electric Driven 2800mm Carton Gluer Machine Semi Automatic

Product Details:

Place of Origin:	CHINA
Brand Name:	Hh
Certification:	CE EAC
Model Number:	2800mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	plastic
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	50 sets every month

Contact Now

Electric Driven 2800mm Carton Gluer Machine Semi Automatic

Description

Glue Type:	Normal Cold Glue	Warranty Of Core Components:	One Year
Automatic Grade:	Semi Auto	Color:	According Your Requirement
Design Speed:	40pcs/min	Feed Type:	Manual
After Warranty Service:	Video Technical Support, Online Support, Spare Parts	Application:	Machinery & Hardware, Food, Medical, Beverage, Commodity
Highlight:	electric driven carton gluer , 2800mm carton gluer machine , electric driven carton gluer machine

Semi-Automatic Carton Folder Gluer Machine

Function and Characteristics
Folder gluer is the last process equipment of carton making, it is used to produce 3 and 5-layer corrugated cartons (for 7ply cartons is customized). Machine with high efficiency, glue consumption is low, product cost is 10times less than stitching.
Produce carton beautiful and stable. Easy operation, save power and labor, running smoothly. It is a idea machine to make cartons.

Specification

Max size( length+ width)	2460
Max size(width+ height)	1500
Min size( length+ width)	340
in size( width+ height)	240
Motor power	4
The length of Machine	4500
The Width of Machine	2100
The weight of Machine	1200kg
Machine speed	40
Dimension(mm) length×width×height	4000×2000×1900

Detail of machine

Structure of machine
1. Feed table
Photoelectric control the height of table, reduce labor and improve work efficiency.
2. Press correction
After gluing go into press part, adhesion smooth and firm.
Equipped automatic correction device to enure the carton size is correctly, and effectively avoid knife and fork problem.
Equipped Fan to dry the glue fast.
Automatic counter with sensor, when reaching to the set height, send out cartons automatically.
3. Horizontal Output
Convey out product carton automatically, easy for bundling.
