Cardboard Flexo Printer Slotter Die Cutter 4 Color Computerized

Large Image : Cardboard Flexo Printer Slotter Die Cutter 4 Color Computerized

Product Details:

Place of Origin:	CHINA
Brand Name:	Hh
Certification:	CE EAC
Model Number:	1200*2600mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	plastic
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	30 sets every month

Contact Now

Cardboard Flexo Printer Slotter Die Cutter 4 Color Computerized

Description

Type:	Flexo Printer Slotter Die Cutter Machine	After-sales Service Provided:	Online Support, Video Technical Support, Overseas Service Center Available, N
Automatic Grade:	Full Atuomatic, Computerized	Name:	Flexo Printer Slotter Die Cutter
Color:	1-6 Color Optional	Speed:	100/150/200 Pcs/min
Usage:	Flexo Printer Slotter Die Cutter	Product Name:	Flexo Printer Slotter Die Cutter
Highlight:	Computerized Flexo Printer Slotter Die Cutter , 4Color Flexo Printer Slotter Die Cutter , 4 Color Printer Slotter Die Cutter

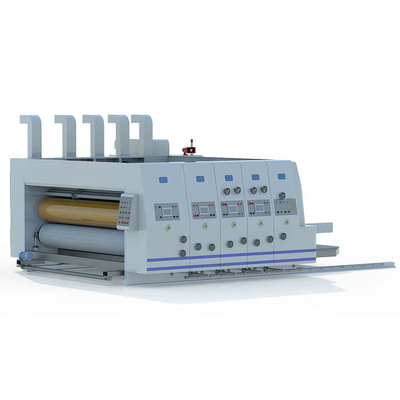

Cardboard Flexo 4 Color Printer Slotter Die Cutter machine

1.Whole machine electric parts was choice the domestic famous brand, good and steady quality .

2.Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digital controlled grinder.

3.All the transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.

4.All the transmission gears was used the 48#alloy steel, which is grinded after heat treatment, and it was made by rubbing. It still maintains the high topping precision.
5.Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the machine.

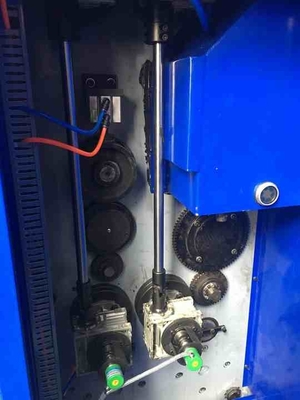

6.Planetary gear structure. All gears are after fine grinding.

7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

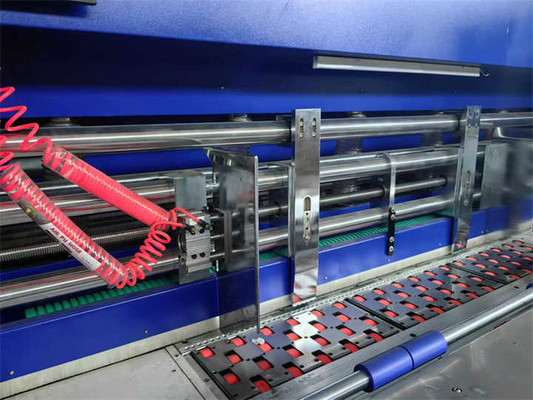

Feeding unit:

1.Paper feeding type: auto leadpaper feeding.

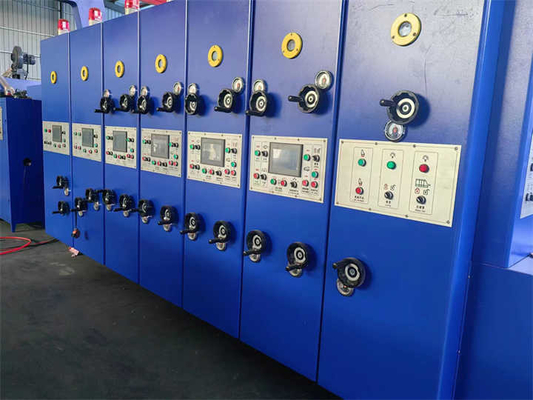

2.Control face-plate function button putting concentrate and simple, operated convenient.
3.Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its proceeding.
4.Infrared photo-electricity counter can presetting the order paper quantity.
5.One lock function for whole machine, which can avoid the damaged the machine with error operation

(The mainframe can not running when the every unit have not connected)
6.Pressure model elasticity feeding rubber roller, which can not to damaged the strength for corrugated cardboard.

Printing unit:

1.Printing roller: made of high quality alloy steel, precise grinded with chrome lated.
2.Printing phases was adopted the planetary gear structure, the electric digital 360°adjustment, digital display(stop, running can adjustment).
3.Printing roller landscape orientation was adopted electric digital adjustment, the adjustment scope is 20mm.
4.Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
5.Fixing the oil interval, printing pressure roller, lead roller interval were used the self-lock worm wheel and worm device adjustment and fix.
6.Printing phase fix was used the pneumatic brake structure, the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.
7.The steel anilox roller: 180-250 lines combined anilox roller. Steel surface chrome, pressure the anilox and rigid chrome.
8.Option: re-position function, computer memory printing plate position, which can automatic re-position when scrub the plate. Pneumatic uplift plate device, the anilox roller break away pneumatic, smooth the oil automatic when the mainframe stop, it can prevent the oil dry.

Slotting unit:

1.Slotting phases was adopted the planetary gear structure, the electric digital 360° adjustment, show the digit (stop, running can adjustment).
2.Slotting tool rest, pressure wheel, horizontal move by manual mechanic joint adjustment.
3.The height of box size was adjustment by synchronous.4.Pressure interval was used the self-lock worm wheel and worm device adjustment and fix.
5.The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
6.Slotting knife was choice with the high quality alloy steel , which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used,it could be equipped with portable punching die holder.

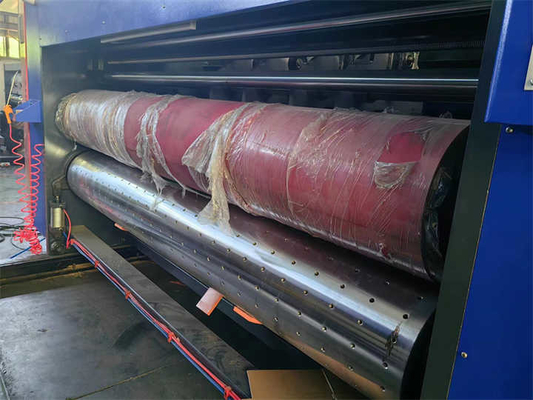

Die cutter unit:

1.The side to side 50mm mechanical spiral movement device adopted on the anvil drum.
2.The die drum transverse movement can prolong the service life of anvil drum.
3.Die cutting phase is digitally controlled by motor and PLC.
4.The die cutting cylinder lateral register is digitally controlled by motor and PLC, rang about ±10mm.
5.Motorized caliper adjustment between anvil roll and die drum.
6.Self-locking system is adopted on feeding rolls.
7.Anvil Rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed, the compensation scopes ±3mm.
8.Anvil trimmer to keep surface of the anvil covers flat and smooth.

Specification

Specification
Machine Model	2200	2400	2600	2800
Color printing	1-6 colors	1-6 colors	1-6 colors	1-6 colors
Machine speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min
Max cardboard size	1400*2000mm	1400*2200mm	1400*2600mm	1400*2800mm
Max printing size	1350*2000mm	1350*2200mm	1350*2500mm	1350*2800mm
Die cutting distance	1707017070mm 170170170170mm	1707017070mm 170170170170mm	1707017070mm 170170170170mm	1707017070mm 170170170170mm
printing plate	6mm	6mm	6mm	6mm
sheet thickness	3-11mm	3-11mm	3-11mm	3-11mm
