Product Details:
|
| Highlight: | Single Facer Corrugated Carton Box Machine,Corrugated Single Facer,Carton Box Single Facer |
||
|---|---|---|---|

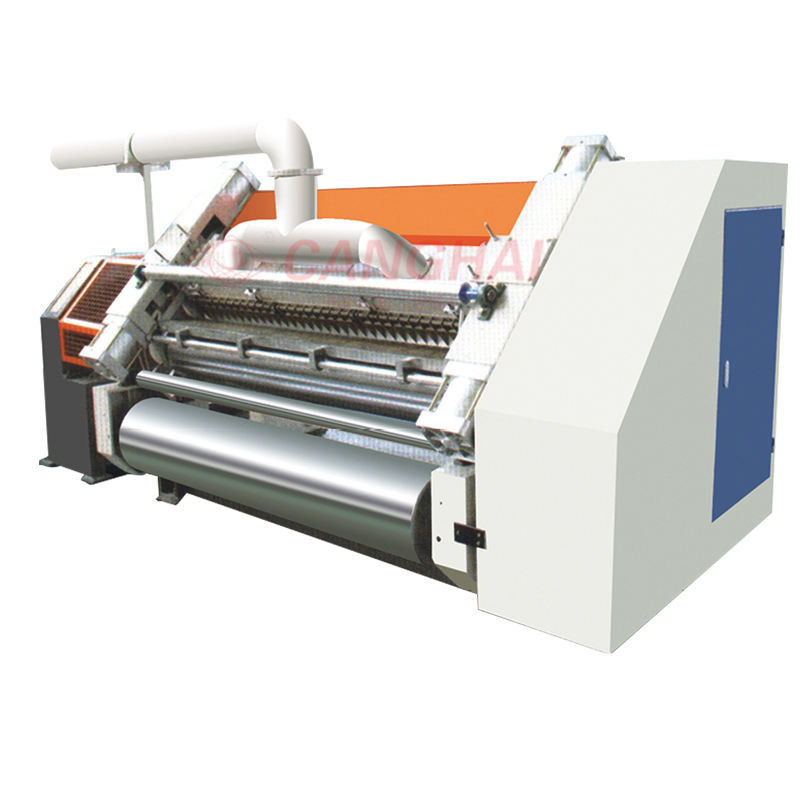

Single Facer Corrugated Carton Box Machine
| Style of Transmit cardboard | Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device. |
| Style of Control Roller | Pneumatic control the upper roller, pressure roller and glue roller |
| Lubrication | Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears |
| Glue Width Adjusting | Electric adjusting |
| Driving Way:With frequency inverter | |
Common Spec:
Working width: 2000mm
Operation Direction: Left or right (decided by the workshop of customer)
Design Speed:150m/min
Working Speed: 120m/min
Temperature: 180—200℃
Air pressure: 0.8—1.3Mpa
Corrugated Flute Type: UV or UVV
Spec of Motor:
Main Motor: 15kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
Fan Motor: 11kw Nominal voltage:380V 50Hz Continuous (S1) working Type
