Product Details:
|
| Key Word: | Corrugated Carton Making Machine | Lengthways Sheets Length: | 210-600MM |
|---|---|---|---|
| Product_Material: | Corrugated Cardboard | Product Type: | Corrugated Cardboard |
| Application: | Cardboard Inserting For Packaging | Product_Origin: | China |
| Thickness: | 2-10mm | Effective Width: | 2800mm |
| Product_Size: | Customized | Automatic Grade: | Semi-automatic |
| Machine Width: | 1600mm 1800mm 2000mm 2200mm | ||
| Highlight: | Thin Blade Slitter Scorer Machine,Corrugated Carton Box Slitter Scorer,Thin Blade Slitter Scorer |
||

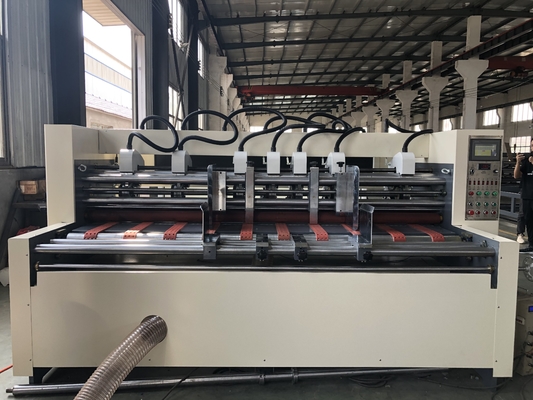

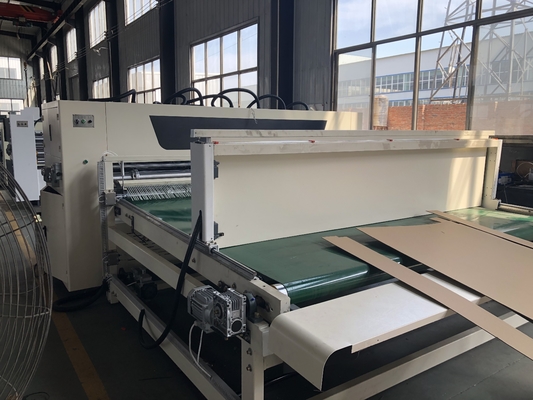

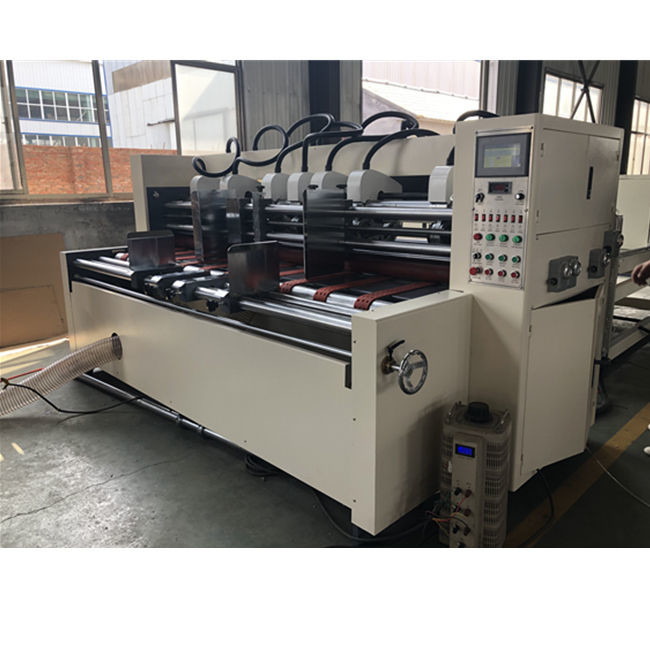

Thin Blade Slitter Scorer Corrugated Carton Box Machine
Structural features:
1.Overcome the phenomenon of collapsed cardboard when cutting in the conventional double-knife and slitting machine. The cutting board is smooth and the quality is obviously improved.
2.The whole machine can move left and right, and it is regulated by a cycloidal reducer.
3.Cutting knife and pressure line adjustment is convenient, error is ± 0.5mm, there is automatic knife sharpening device, which can realize multiple functions such as time-sharpening knife and interval grinding knife.
4.This machine adopts 5-knife and 8-wire type, the blade is made of tungsten alloy steel, and its service life is not less than 3 million run meters.

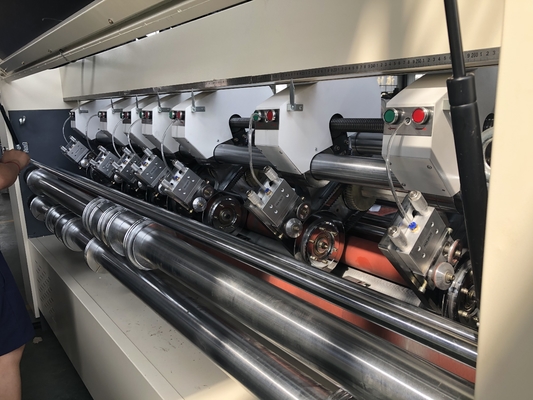

5.Slitting blade electrically adjusted,work with dual smooth shaft guide way,pheumatic locking,assured the stable operation,fast order changing.
| The maximum working width | 2400mm. |
| Mechanical configuration | 7 knives and 12 lines |
| the minimum paper width | 135mm maximum paper width: 2400mm. |
| Row cutter motor | 0.4KW |
| Blade drive motor | 5.5KW. |
