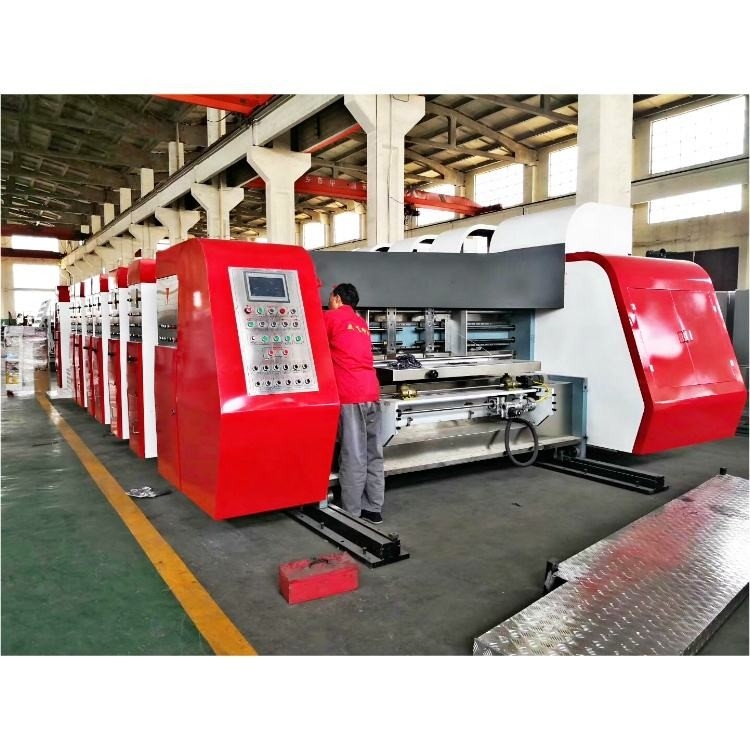

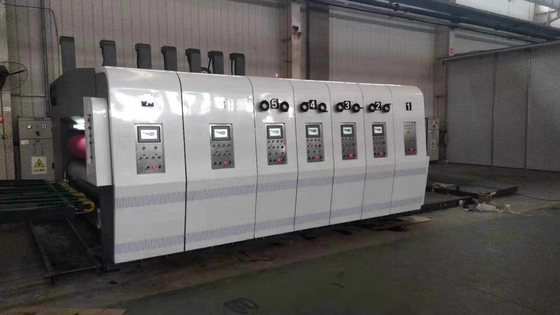

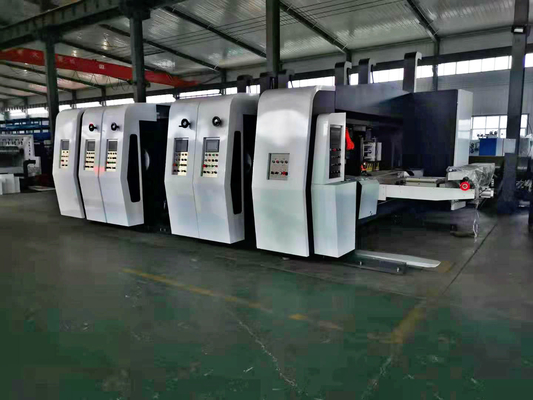

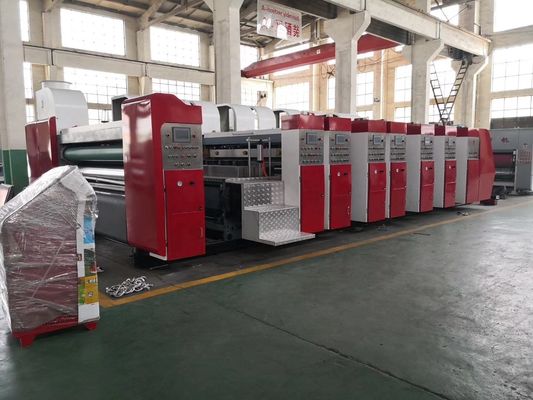

Flexo Printer Slotter Corrugated Carton Box Machine

Flexo Printer Slotter Corrugated Carton Box Machine

Feeder part

1,Machine clutch

1),Electric machine control clutch bell , moving last warning bell ring , ensuring the safety of operation personnel.

2)Drive shaft with a safe clutch to avoid misuse and damage to the machine (the machine is not fixed, the host can not start operation).

3),Pneumatic interlocking device .

4), Host motor start up protection device .

Printing unit

1,printing roller

1),out diameter is 405mm(include printing plate 410mm).

2),Steel plate material, surface grinding, hard chromium plating.

3),Balance correction, smooth operation.

4),Fixed ratchet wheel shaft.

Slotting unit(full computer control)

1, planetary wheel phase adjustment, positive and negative 360 degrees electric operation adjustment.

2, Carton length width height adjustment by computer control.

3, The front knife position to the automatic zero, zero after the linkage of the seat before the axial displacement.

4, When the Back knife Circumferential movement independently, to adjust the height of the carton, box high electric adjustment.

Die cutting unit

1,roller is high quality steel surface hard chromium plating,correcting and drilling balancing,Increase the stability and reliability of its operation.

2,Die roller and soft roller adopt International standard size,knife die roller diameter is 260mm, add up die mould diameter is 310mm,soft roller diameter is 281mm(Rubber sleeve diameter is 297mm),Can be in any place to buy the right template and rubber gasket .

3,knife die mould roller and rubber pad roller gap adopt manual adjustment .

4,die cutting roller phase adopt planet structure,High precision , large bearing capacity , stop , can be 360 ° electric digital adjustment operation

Vibrator Stacker unit

1,Paper-receiving arm can be operated by hand ,the receiving paper height can be choosed freely.

2,Paper-receiving arm belt can adjust the tension and loosen lonely.

3,Receiving paper platform rise and fall are driven by the powerful chain.

4,Receiving paper platform is automatically adjust the inclination according to the cardboard rising, the rising motor with electrical braking function, so the platform can keep the fixed position.
