Product Details:
|
| Speed: | Adjustable | Feeding Type: | Lead Edge Feeder |
|---|---|---|---|
| Printer Plate Thickness: | 7.2mm | Slotter: | Computer Slotter |
| Processing Type: | Cutting Machine | Nail Distance: | 3800mm |
| Spare Parts: | Siemens.schneider | Port: | Tianjin Xingang Port Of China |
| Cardboard Thickness: | 3 5 7 Layer | Machinery Test Report: | Provided |
| Overall Dimension: | L6800*W2000*H1850mm | Printing Ink: | Water-based Ink |
| Control System: | PLC Control | ||
| Highlight: | Slotter Rotary Die Cut Machine,Rotary Die Cut Machine,Carton Making Flexo Printer |
||

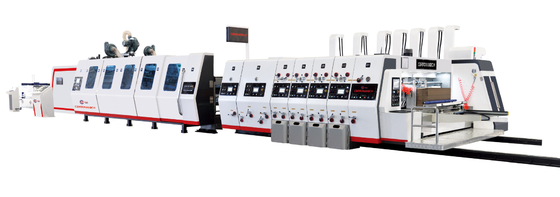

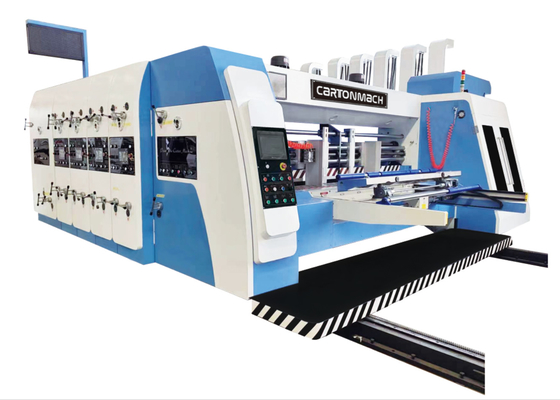

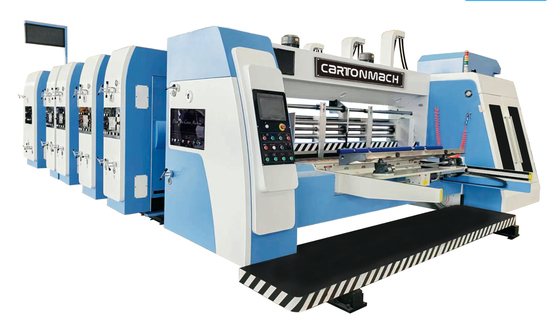

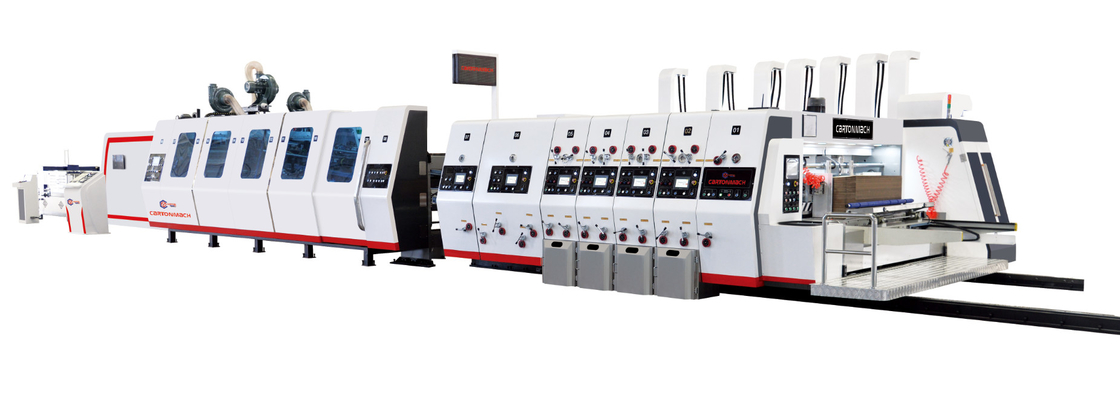

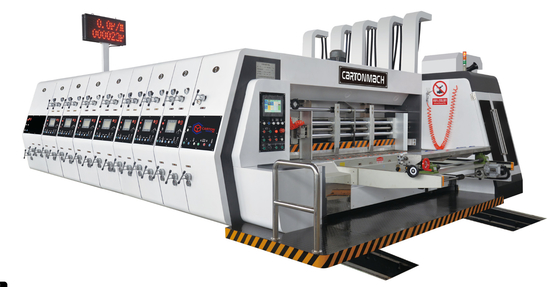

Corrugated Carton Box Machine
Functions and Characteristics:
| Type | YK1224 |
| Max. passing cardboard(mm) | 1200×2400 |
| Economy printer cardboard(mm) | 1200×2200 |
| Min.cardboard(mm) | 350×550 |
| Suitable cardboard thickness(layers) | 3,5,7 |
| chromatically precision (mm) | ±1.0 |
| slotter width(mm) | 7 |
| score width(mm) | 50 |
| Max. slotter depth(mm) | 390 |
| slotter precision(mm) | ±1.5 |
| Max. speed (pcs/min) | 60 |
| Economy working speed (pcs/min) | 30--50 |
| Power (KW) | 11 |
Paper Feeding Department
Chain link to push the panel is used to deliver the paper on the working table, the manual single sheet feeding is adopted to a large cardboard scope, and the common warp cardboard is suitable. The 10# GB code channel steel firm is durable. Front axle diameter 40mm, with three points fixed, and steady revolution. Chain adjusting mechanism is equipped.
2. Printer unit
Phasing organization:
(1) The manual worm gear and worm type,
The version roller can be rotationally adjusted to 360 degrees, Scale is divided into 50 small standards, When the scale transfers, the version roller will move 5mm. Accurate and convenient. One group selects the live navel gear adjustment method.
(2) The axial adjustment organization may cause the version roller to adjust 20mm. (One side 10mm)
(3) Printing ink circulation use the pneumatic diaphragm pump, which can provide the ink stable .The operation and maintenance is simple.
(4) The printing ink mesh filters the impurity, protecting the rubber net Roller.
3. Slot unit
(1) Slot knife width is 7mm, the T10A tool steel is grinded after the heat treatment, the cutting edge is sharp.
(2) Box height is adjusted synchronically by hand .cutting time of changing order, highly effective and quick.
(3) Phase adjustment can be done by hand.
4. The transmission gear
The gear material is the QT-400 modular cast iron, thickness 35MM,which has the high resistance to wear, the simple maintenance and so on.
